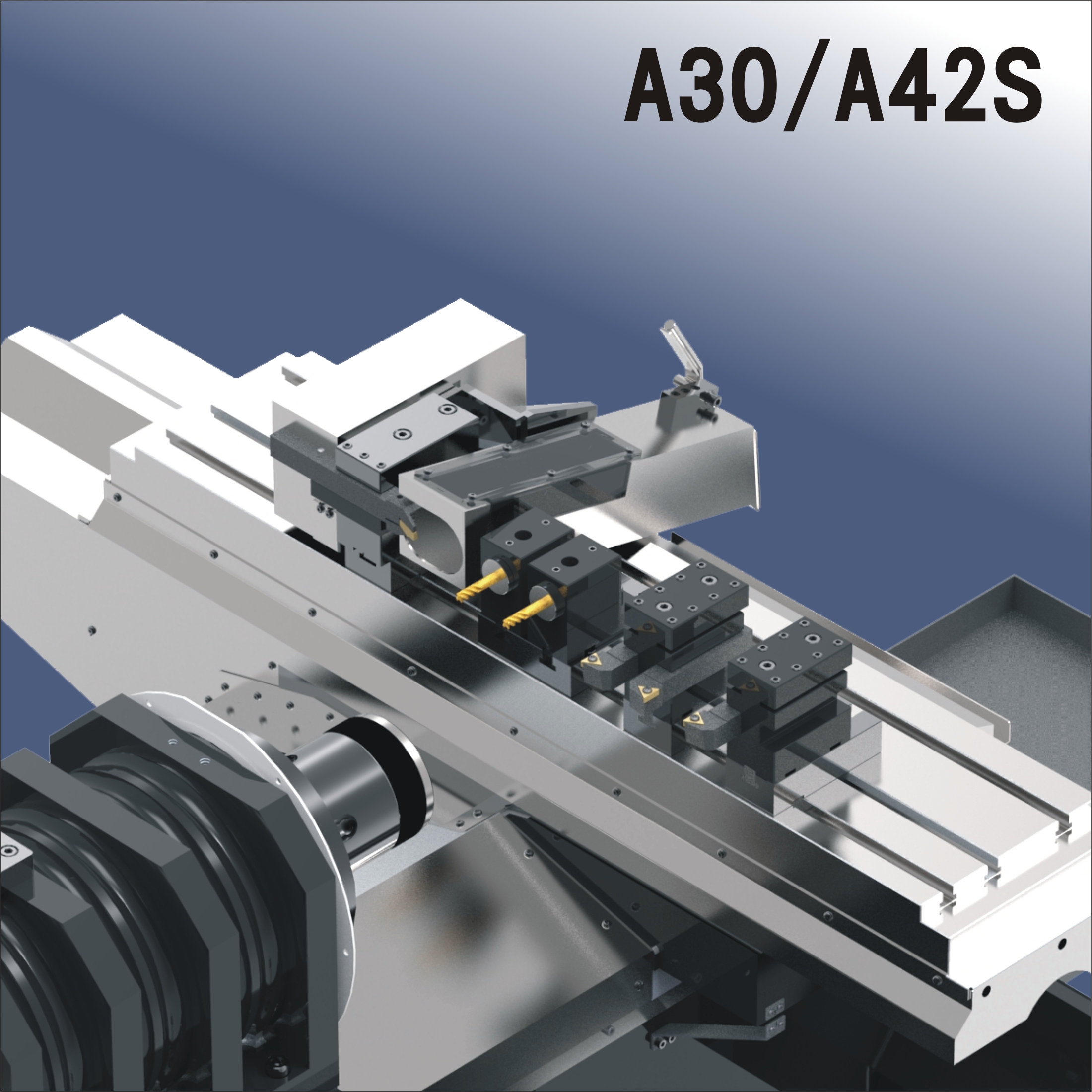

Gang tooling is easy to use for production of simple parts.On-table
type of part catcher working with up to 9 tools at moving speed rate
of 30 meter per minute,it might meet most requirements in which
high efficiency is primary. For regular parts, pre-tooling plate is also
avaliable as an option.
| Item | A30S | A42S | Unit | ||
| Capacity | Swing over slide | 380 | mm | ||
| Swing over table | 160 | mm | |||
| Max. bar dia | 30 | 42 | mm | ||
| Max. chuck dia | 5" | 6" | inch | ||
| Spindle | Spindle type | Belt type | |||
| Max. spindle speed | 8000rpm | 6000rpm | min-1 | ||
| Motor | 5.5/3.7 | 7.5/5.5 | kw | ||
| Lubrication / Cooling | Grease | ||||
| Tool Post | Type | Gang type | |||
| Max. tool shank | 20/Ø25 | mm | |||
| Slide | Max. traverse X , Z | 400 , 300 | mm | ||
| Rapid Traverse X , Z | 30m | min-1 | |||
| Lubrication | Ball screw X,Z
(0.2-0.3Mpa)
|
Oil Air | |||
| Ball screw Y | Oil | ||||
| Linear Guide | Oil | kw | |||
| Coolant | Motor | 0.35 | kw | ||
| Capacity | 180 | L | |||
| Others | Pneumatic source(0.5-0.6Mpa) | 150 | L/min | ||
| Power requirement | 11 | 13 | kva | ||
| Machine weight | 2030 | 2100 | kg | ||
